输出形式 |
埋入式 |
非埋入式 |
||
| 直流(DC) |
NPN |
NO | XGL12-2N1 |
XGL12M-4N1 |
|
NC |
XGL12-2N2 |
XGL12M-4N2 | ||
|
NO+NC |
XGL12-2N4 |
XGL12M-4N4 |
||
| PNP |
NO |
XGL12-2P1 |
XGL12M-4P1 | |
|
NC |
XGL12-2P2 |
XGL12M-4P2 | ||
|
NO+NC |
XGL12-2P4 |
XGL12M-4P4 |
||
|
DC二线 |
NO |
XGL12-2D1 | XGL12M-4D1 | |
|
NC |
XGL12-2D2 | XGL12M-4D2 | ||
|
交流(AC) |
AC二线 |
NO |
XGL12-2A1 | XGL12M-4A1 |
|
NC |
XGL12-2A2 | XGL12M-4A2 | ||
|
AC三线 |
NO+NC |
- |
- |
|
|
检测距离 |
2mm±10% |
4mm±10% |
||
|
设定距离 |
0-1.6mm |
0-3.6mm |
||
|
响应频率 |
(N.P型):1.5kHz;(D型):1kHz;(A型):25Hz |
(N.P型):0.4kHz;(D型):0.8kHz;(A型):25Hz |
||
|

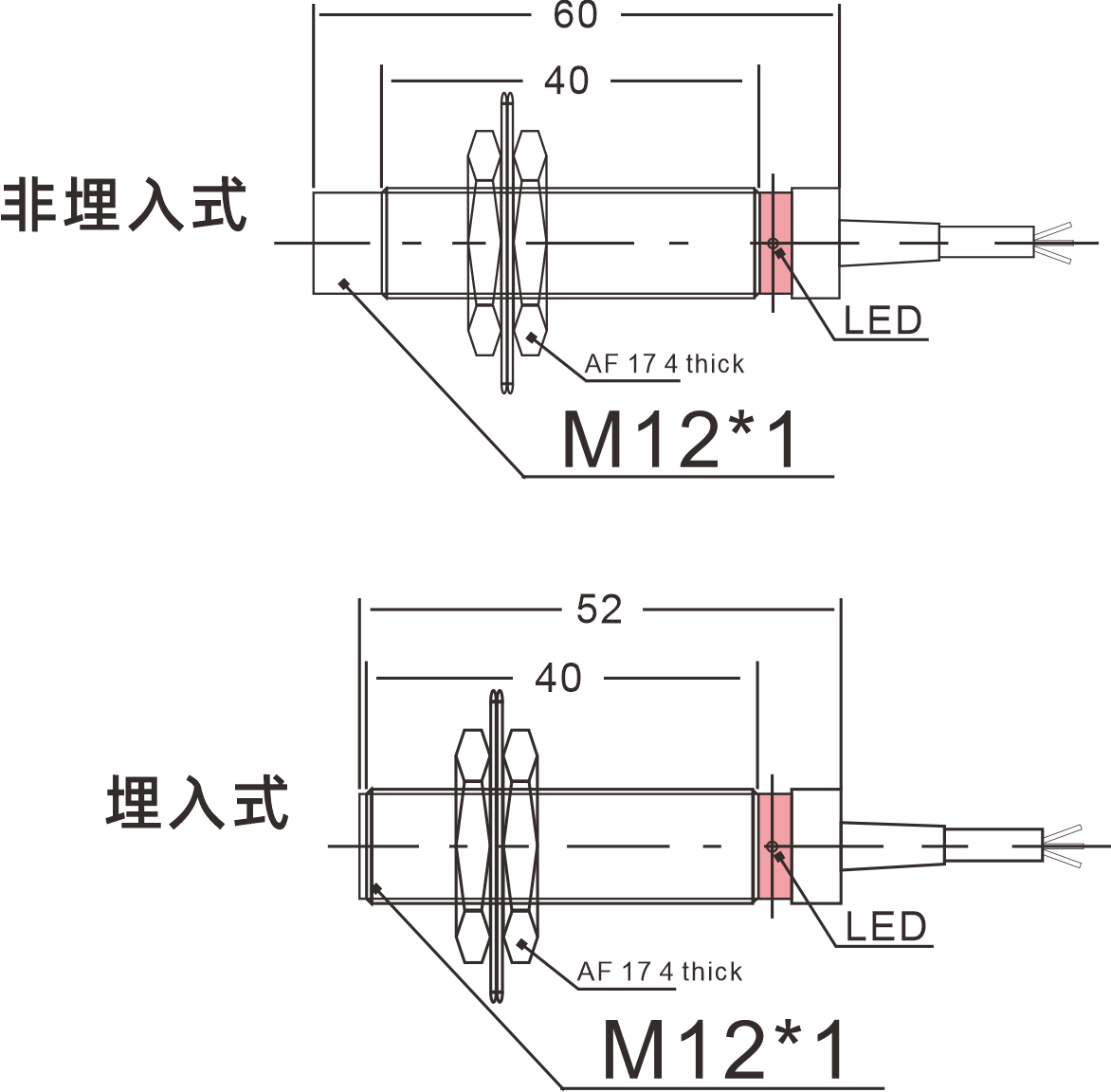

产品尺寸 |
Φ12*52mm |
Φ12*60mm |
