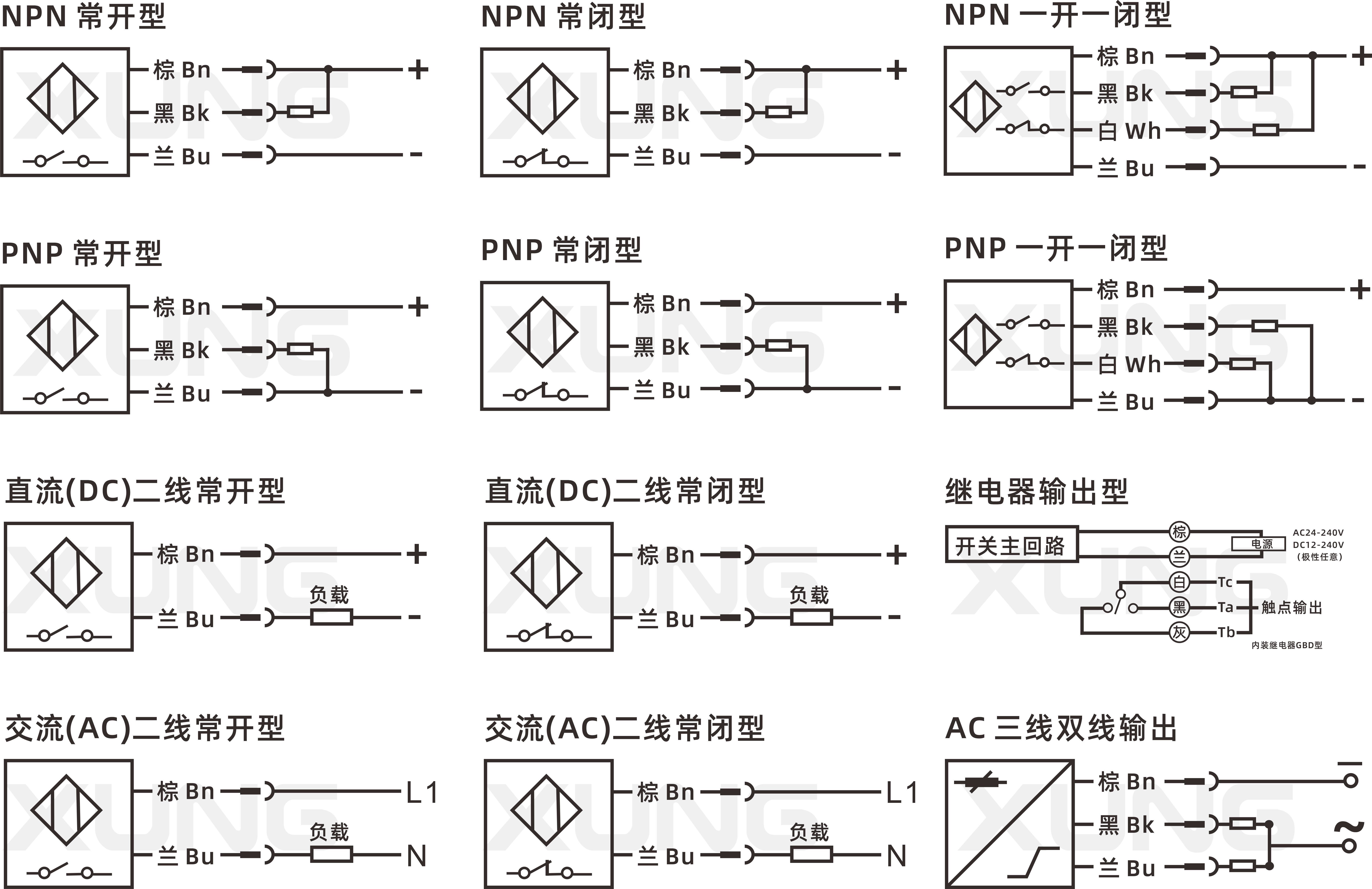

输出形式 |
埋入式 |
非埋入式 |
||
| 直流(DC) |
NPN |
NO | XGLW18-5N1 |
XGLW18M-8N1 |
|
NC |
XGLW18-5N2 |
XGLW18M-8N2 | ||
|
NO+NC |
XGLW18-5N4 |
XGLW18M-8N4 |
||
| PNP |
NO |
XGLW18-5P1 |
XGLW18M-8P1 | |
|
NC |
XGLW18-5P2 |
XGLW18M-8P2 | ||
|
NO+NC |
XGLW18-5P4 |
XGLW18M-8P4 |
||
|
DC二线 |
NO |
XGLW18-5D1 | XGLW18M-8D1 | |
|
NC |
XGLW18-5D2 | XGLW18M-8D2 | ||
|
交流(AC) |
AC二线 |
NO |
XGLW18-5A1 | XGLW18M-8A1 |
|
NC |
XGLW18-5A2 | XGLW18M-8A2 | ||
|
AC三线 |
NO+NC |
- |
- |
|
|
检测距离 |
5mm±10% |
8mm±10% |
||
|
设定距离 |
0-4mm |
0-7mm |
||
|
响应频率 |
(N.P型):0.6kHz;(D型):0.5kHz;(A型):25Hz |
(N.P型):0.2kHz;(D型):0.4kHz;(A型):25Hz |
||

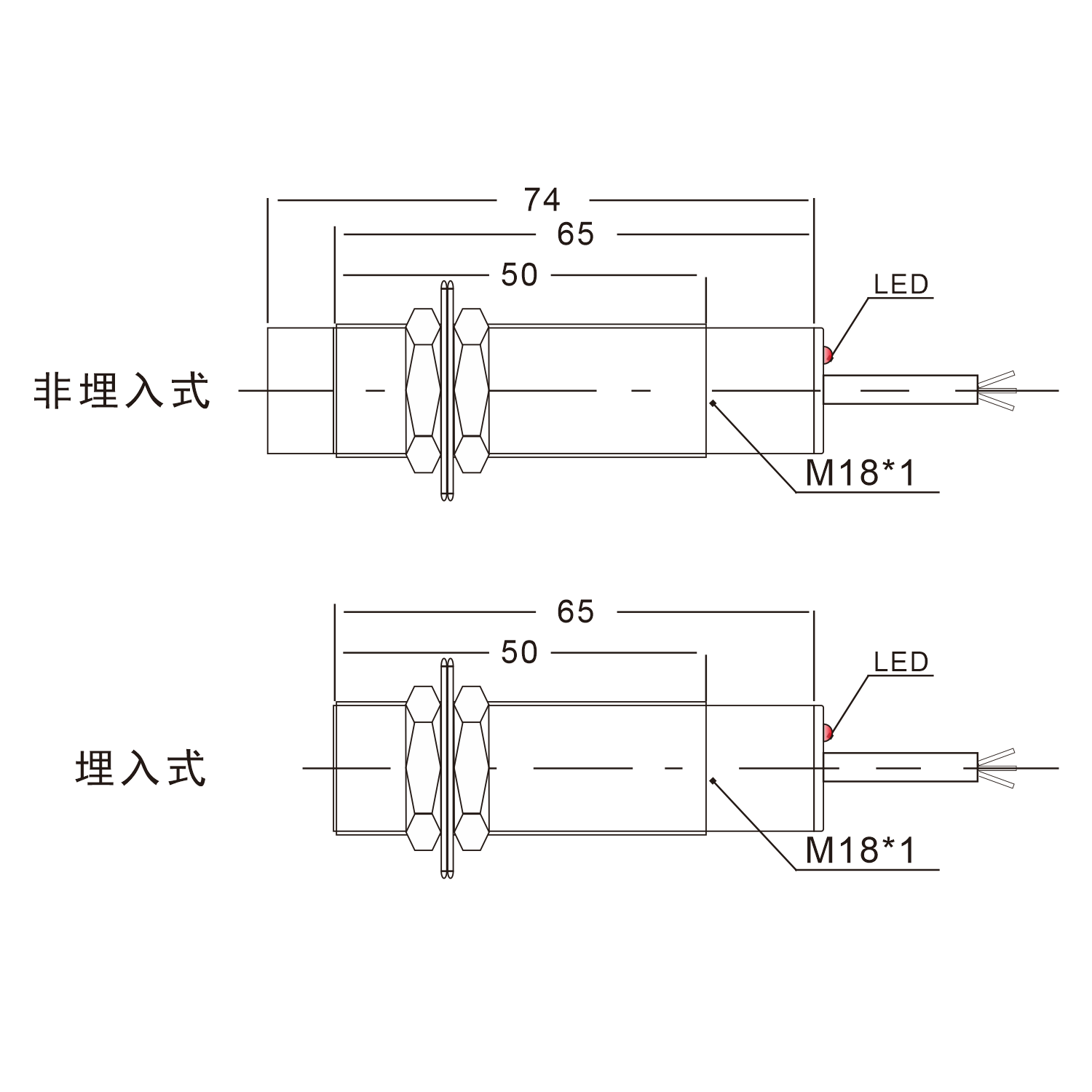

| 产品尺寸 |
Φ18*74mm |
Φ18*65mm |
