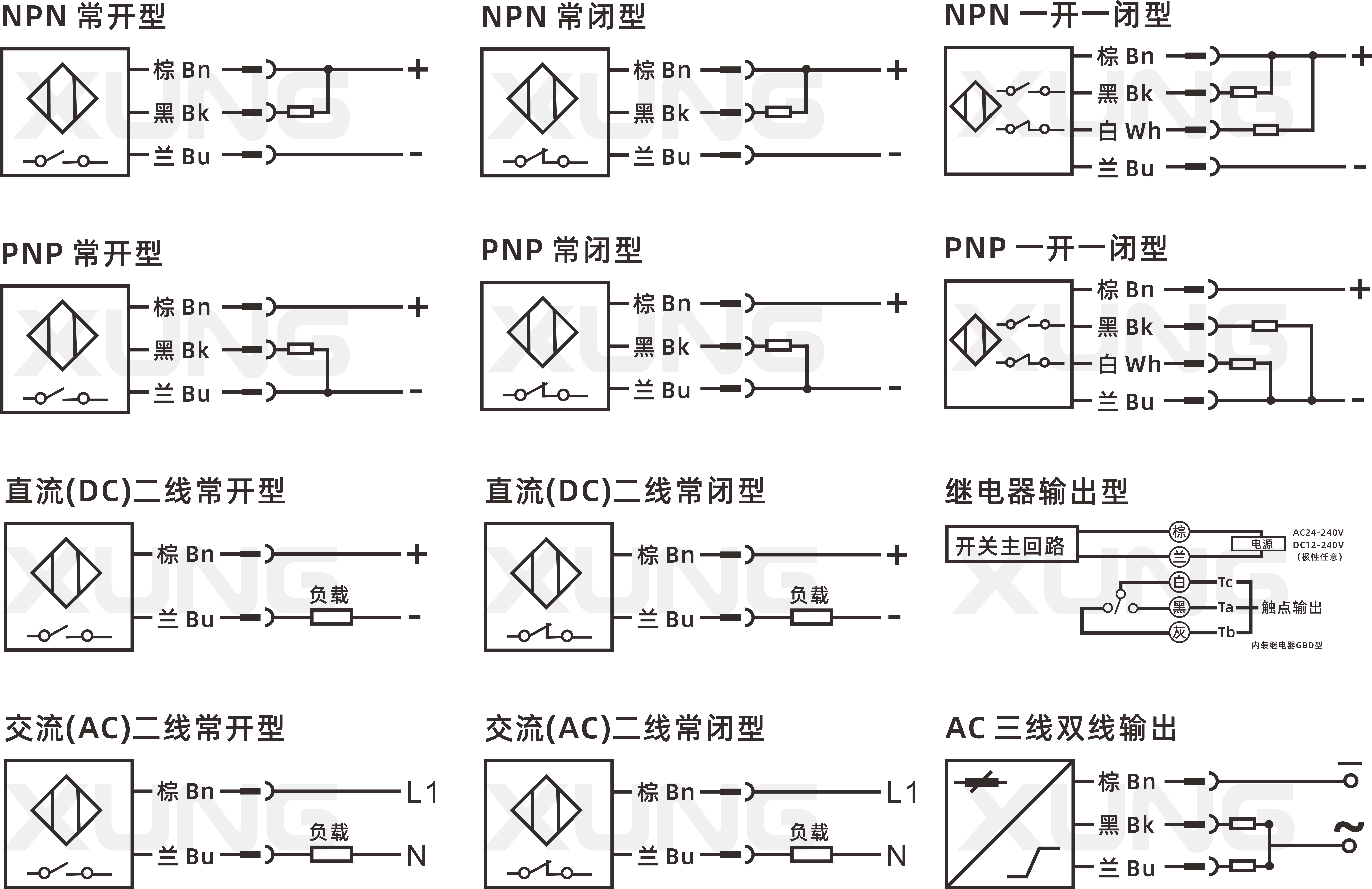

输出形式 |
埋入式 |
非埋入式 |
||
| 直流(DC) |
NPN |
NO | XGL8-1N1 |
XGL8M-2N1 |
|
NC |
XGL8-1N2 |
XGL8M-2N2 | ||
|
NO+NC |
- |
- |
||
| PNP |
NO |
XGL8-1P1 |
XGL8M-2P1 | |
|
NC |
XGL8-1P2 |
XGL8M-2P2 | ||
|
NO+NC |
- |
- |
||
|
DC二线 |
NO |
XGL8-1D1 | XGL8M-2D1 | |
|
NC |
XGL8-1D2 | XGL8M-2D2 | ||
|
交流(AC) |
AC二线 |
NO |
XGL8-1A1 | XGL8M-2A1 |
|
NC |
XGL8-1A2 | XGL8M-2A2 | ||
|
AC三线 |
NO+NC |
- |
- |
|
|
检测距离 |
1mm±10% |
2mm±10% |
||
|
设定距离 |
0-0.8 mm |
0-1.6mm |
||
|
响应频率 |
(N.P型):1.5kHz;(D型):1kHz;(A型):25Hz |
(N.P型):0.4kHz;(D型):0.8kHz;(A型):25Hz |
||
|
产品尺寸 |
Φ8*30mm |
Φ8*30mm |
